Semi-Finished 1.56 Progressive Lenses
| Material: | Resin / plastic/ NK-55 ,KOC |
| Index: | 1.56 |
| Abbe Value: | 38 |
| Transmission: | Over the 98% |
| Abrasion Resistance: | 6/8 H |
| Corridor: | Crossbows 12+2 mm ; Crossbows Preview 9+4 mm |
| Power: | BASE ( 150;350;575;775 ) ADD(+1.00 ---- +3.50) |
| Diameter: | 75 mm |
| Coating: | UC -HC- HMC-SHMC -EMI -UV |
This type of lens is suitable for all kinds of people !
* Vision correction
* Medical use : The doctor prescribed a prescription
* For the driver : Polarized light

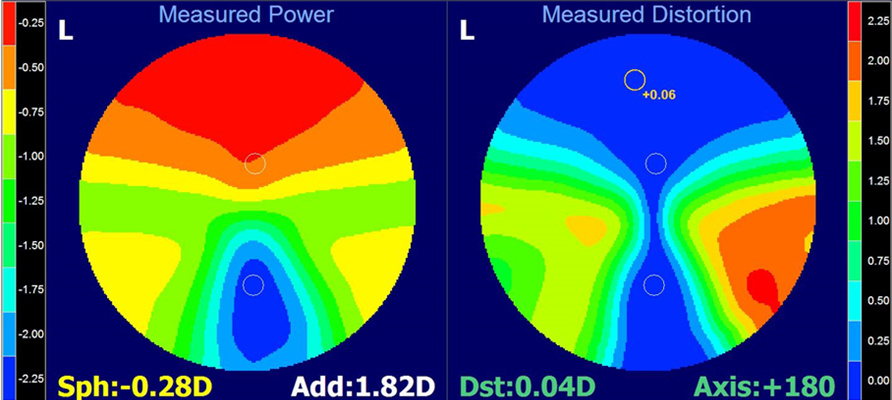

Design Map
Availability :
Semi-Finished(S/F) Lenses
Base Curves :1.50, 3.50,5.75,7.75 Addition Powers : 1.00 to 3.50 in 0.25D steps
1.56 S/F PROGRESSIVE SHORT CORRIDOR LENS | |||||||||||
Diameter | Nominal | True Curve | Radius | Back | Edge | Center | MRP | Seg | Fitting Cross | Sag at | RX Range |
Curve | (n=1.530) | Curve | mm | mm | Dec. | Inset | above MRP | 50mm | |||
75mm | 150 | 1.40 | 378.57 | 6.50 | 10.00 | 7.50 | 0 | 2.25 | 4 | 0.83 | -3.25D/-7.50D |
75mm | 350 | 3.40 | 155.88 | 6.00 | 10.00 | 6.00 | 0 | 2.25 | 4 | 2.02 | -1.00D/-3.00D |
75mm | 575 | 5.70 | 92.98 | 6.50 | 7.00 | 6.50 | 0 | 2.25 | 4 | 3.42 | -0.75D/+2.25D |
75mm | 775 | 7.75 | 68.39 | 5.25 | 5.00 | 11.5 | 0 | 2.25 | 4 | 4.73 | +2.50D/+5.50D |
